Key Features
Hose tail Barb (mm) to Female BSP (in).
Description

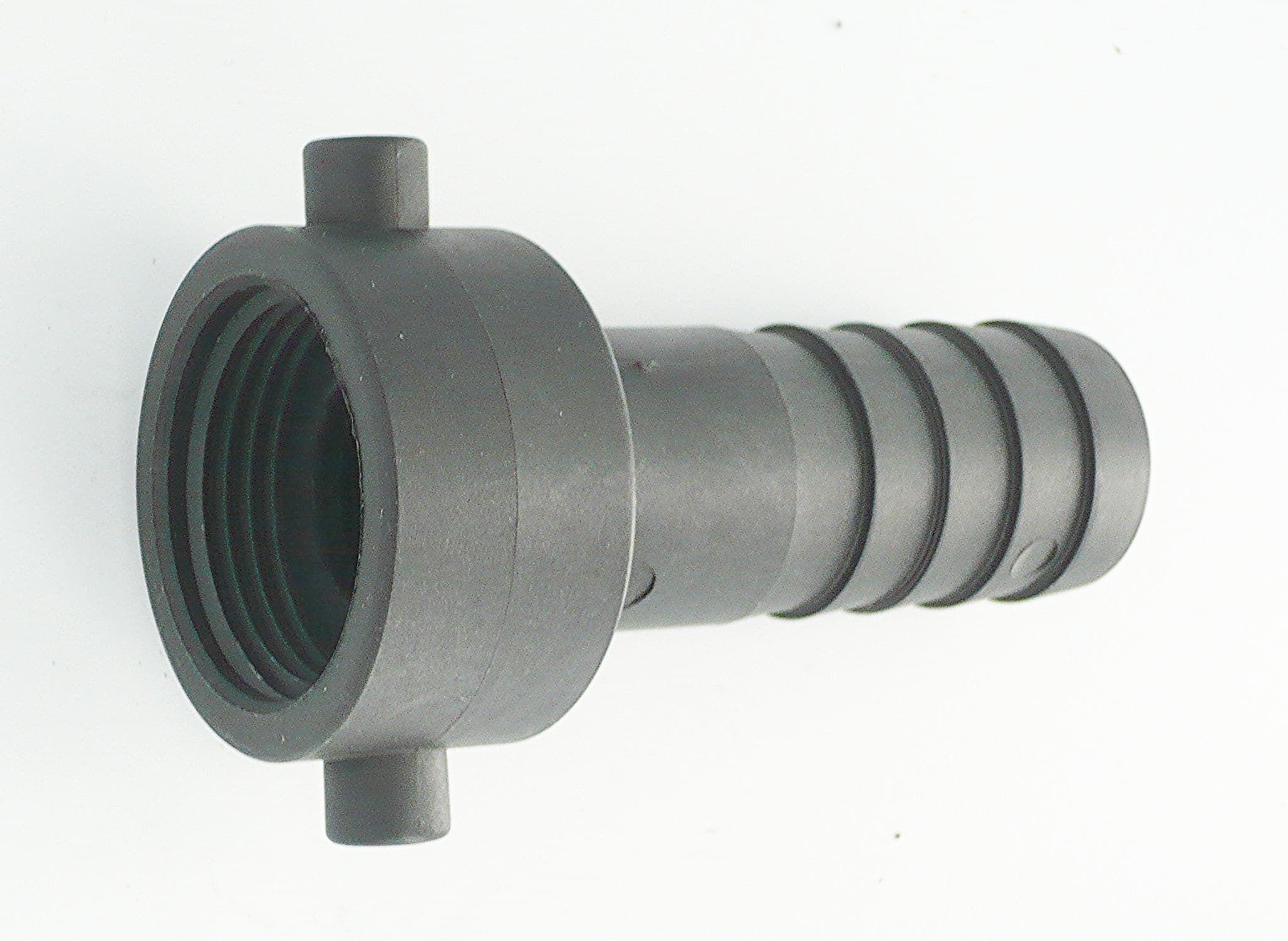

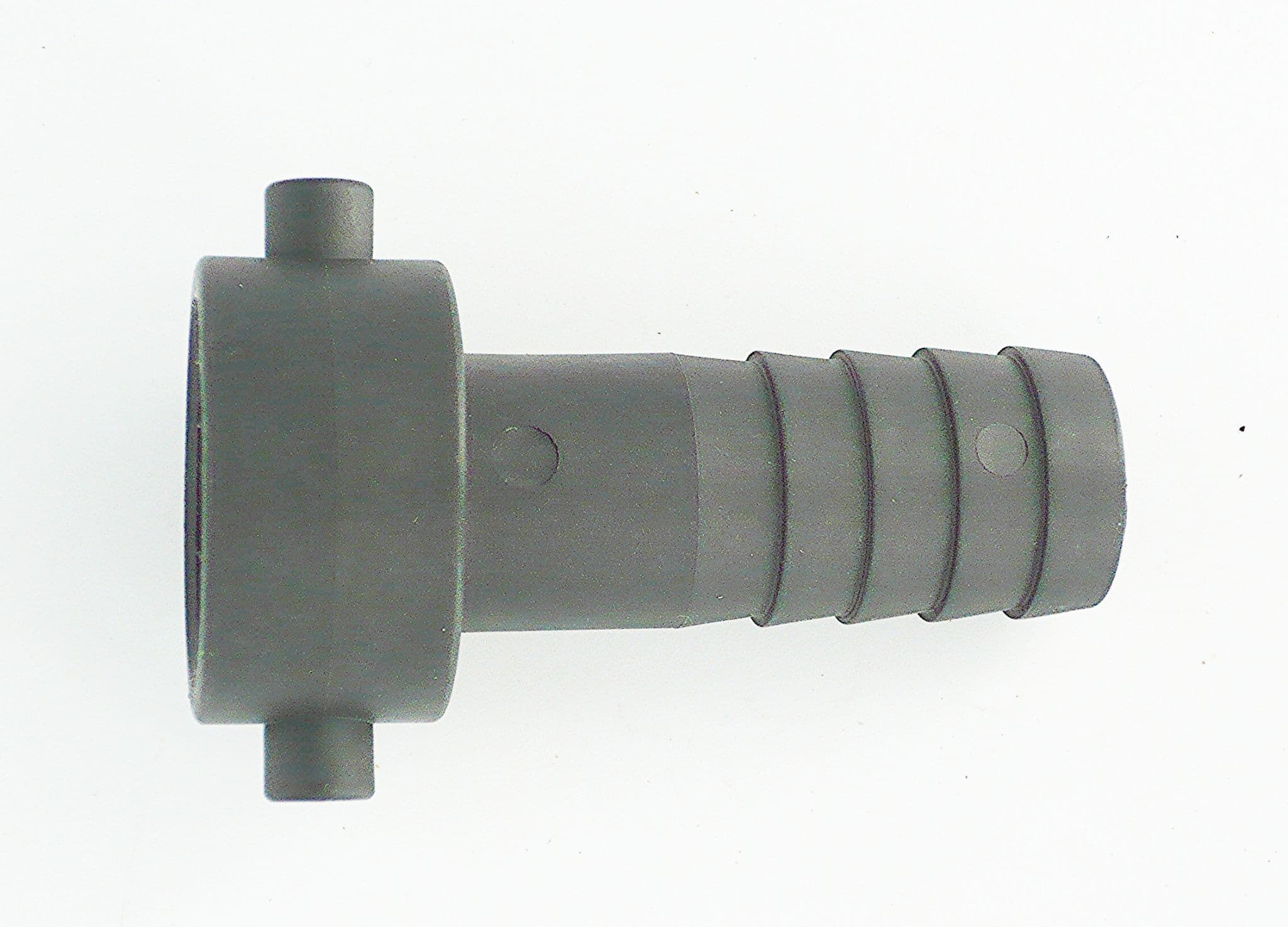

Female BSP Threaded Hose Tail Connectors.
Available Sizes
Size (barb x BSP thread): Click on the DROP DOWN box to select your size
- 13 mm (1/2") to 3/4" BSP Thread
- 20 mm (3/4") to 3/4" BSP Thread
- 25 mm (1") to 1" BSP Thread
- 32 mm (1.1/4") to 1.1/4" BSP Thread
- 40 mm (1.1/2") to 1.1/2" BSP Thread
- 50 mm (2") to 2" BSP Thread
Please note:
All our threaded fittings are BSP fittings.

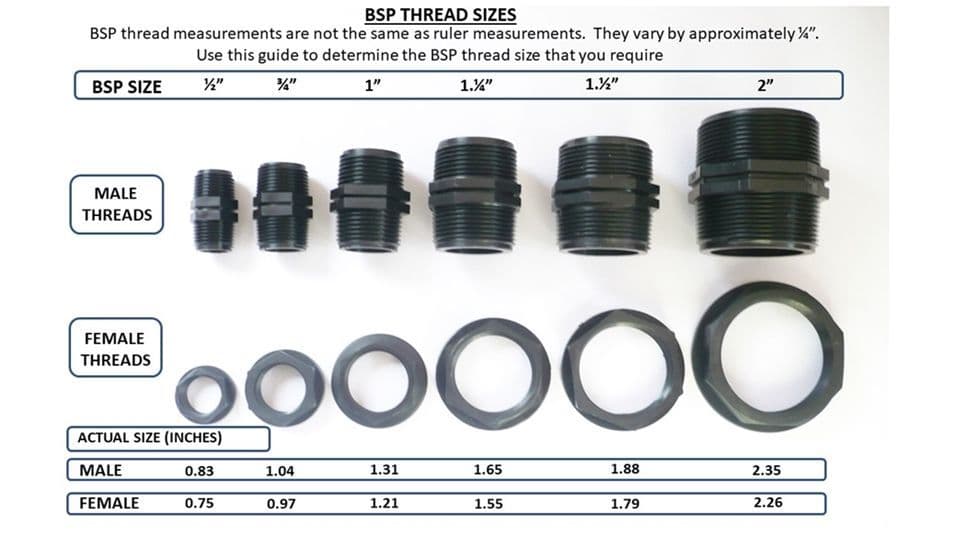

BSP sizes are not the same as a ruler measurement. To determine the BSP size, take the imperial measurement of the external diameter of the thread and minus ¼” – this will give you the BSP size ie: external measurement is 1 ¼” then you require a 1” BSP fitting. A chart is attached to this listing to help you to decide the size you require
